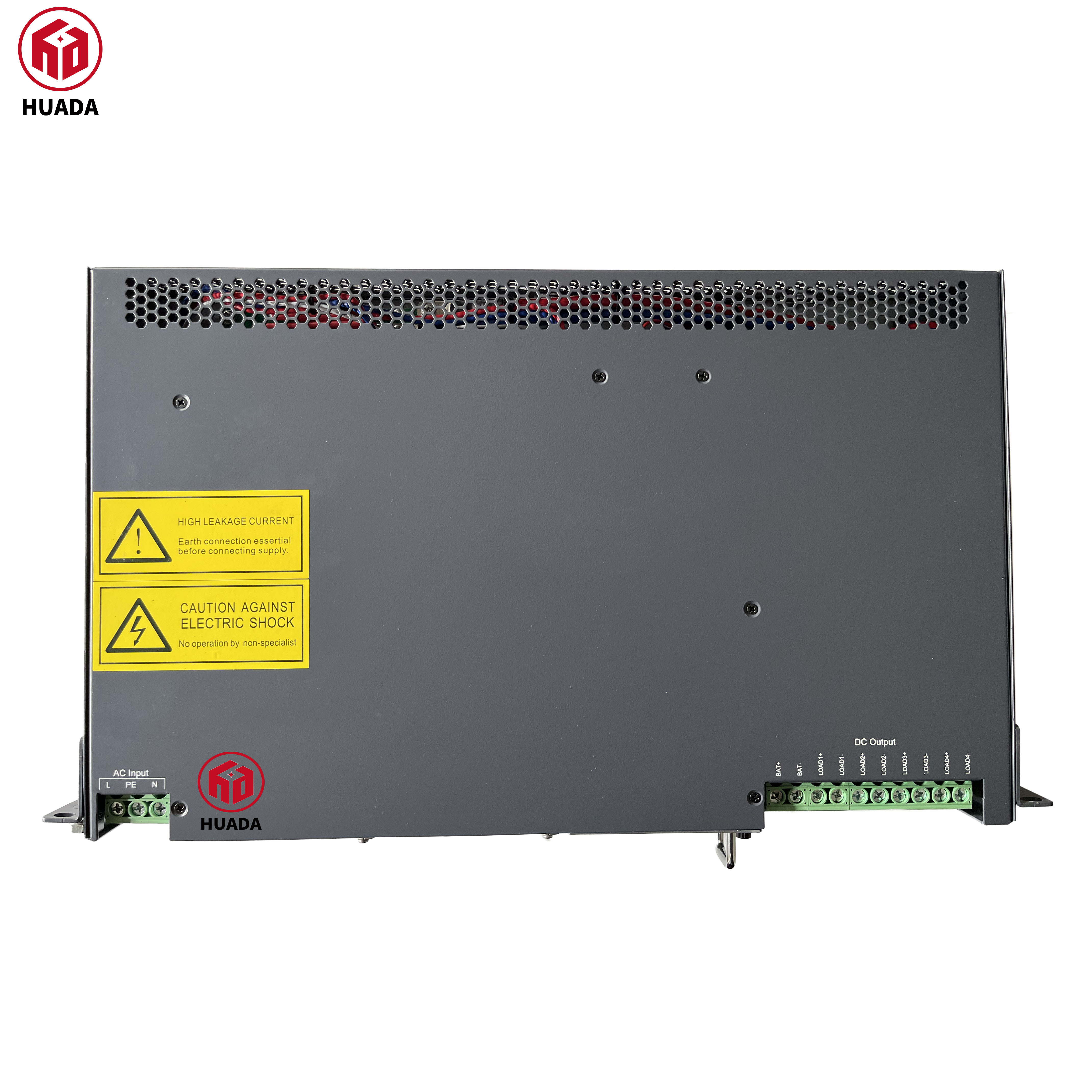

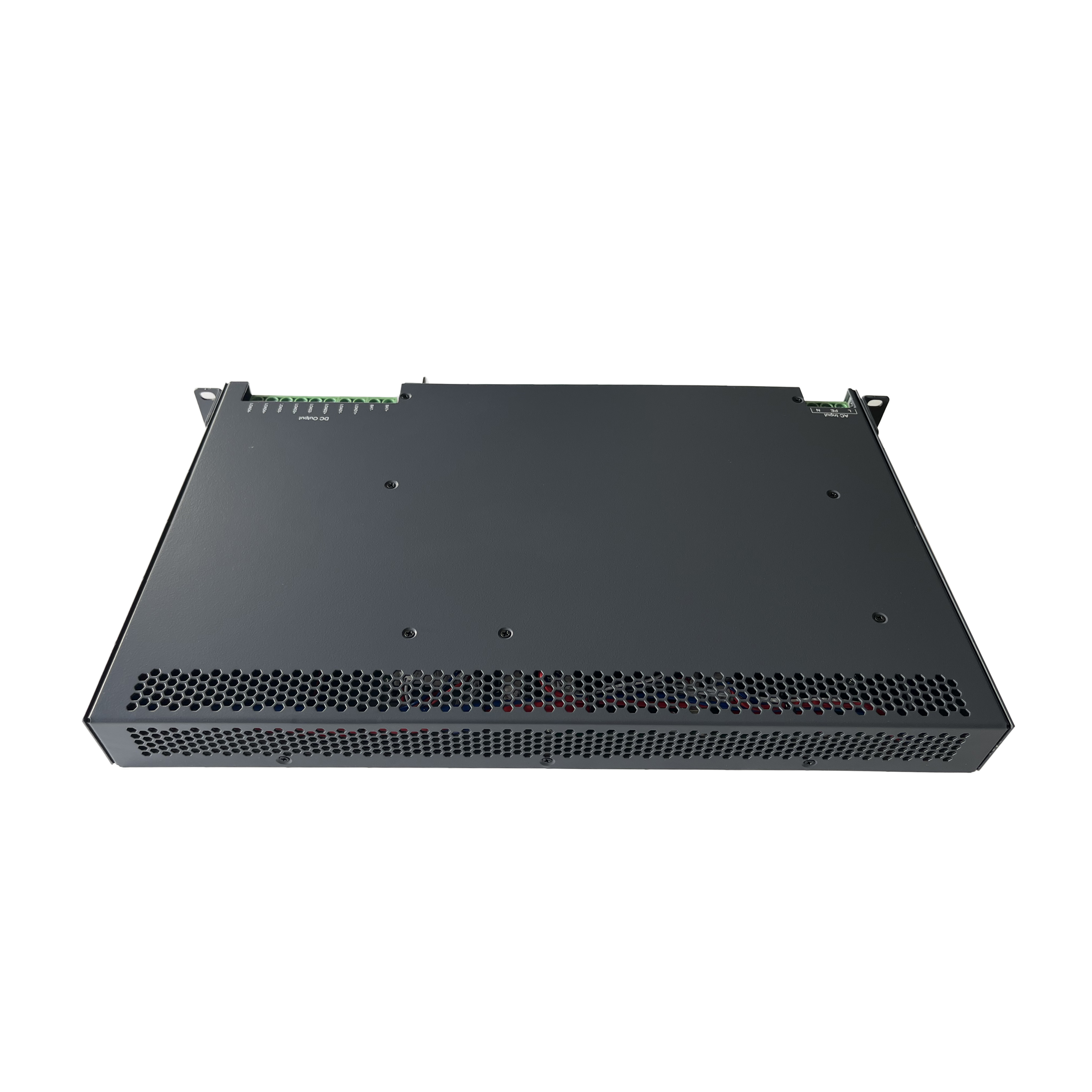

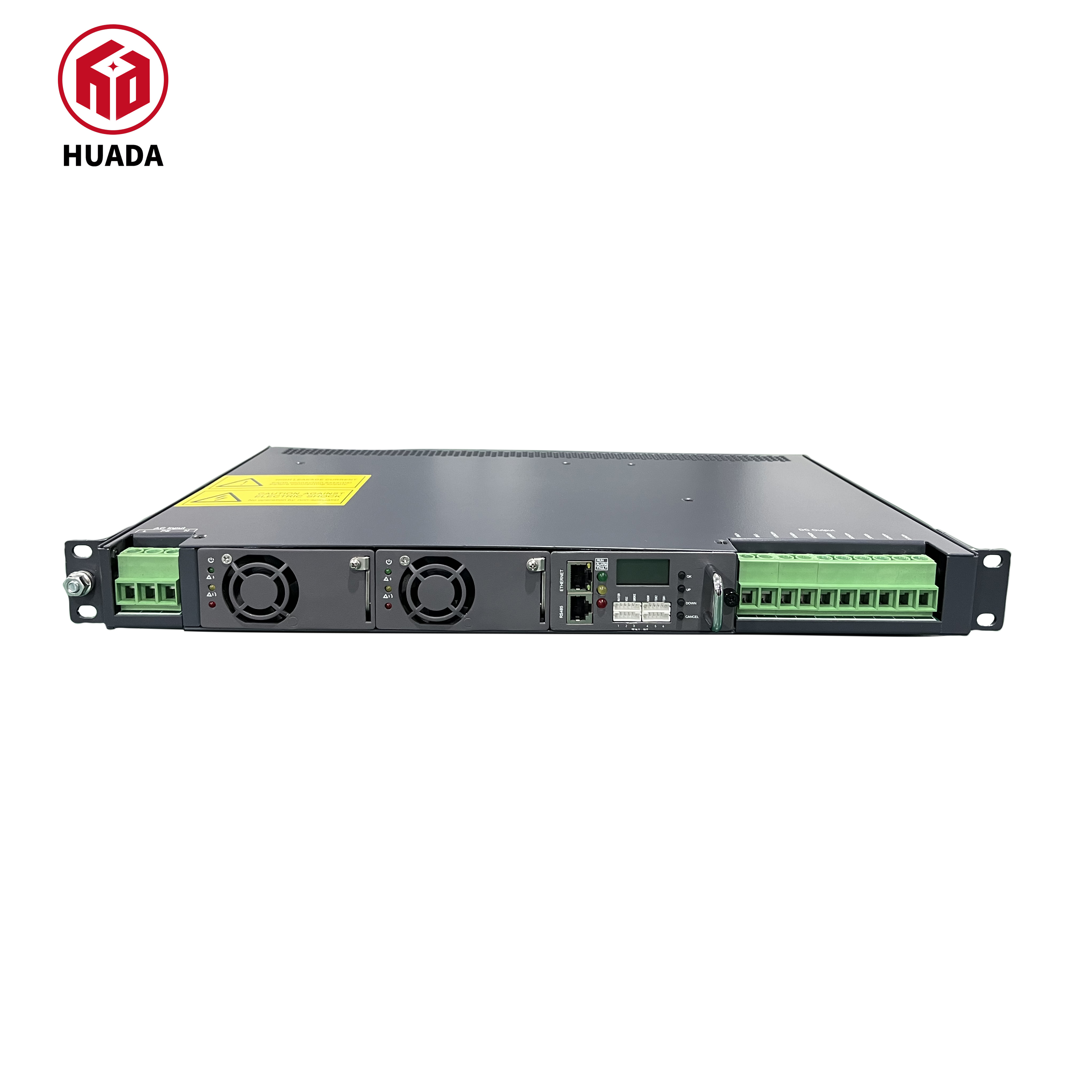

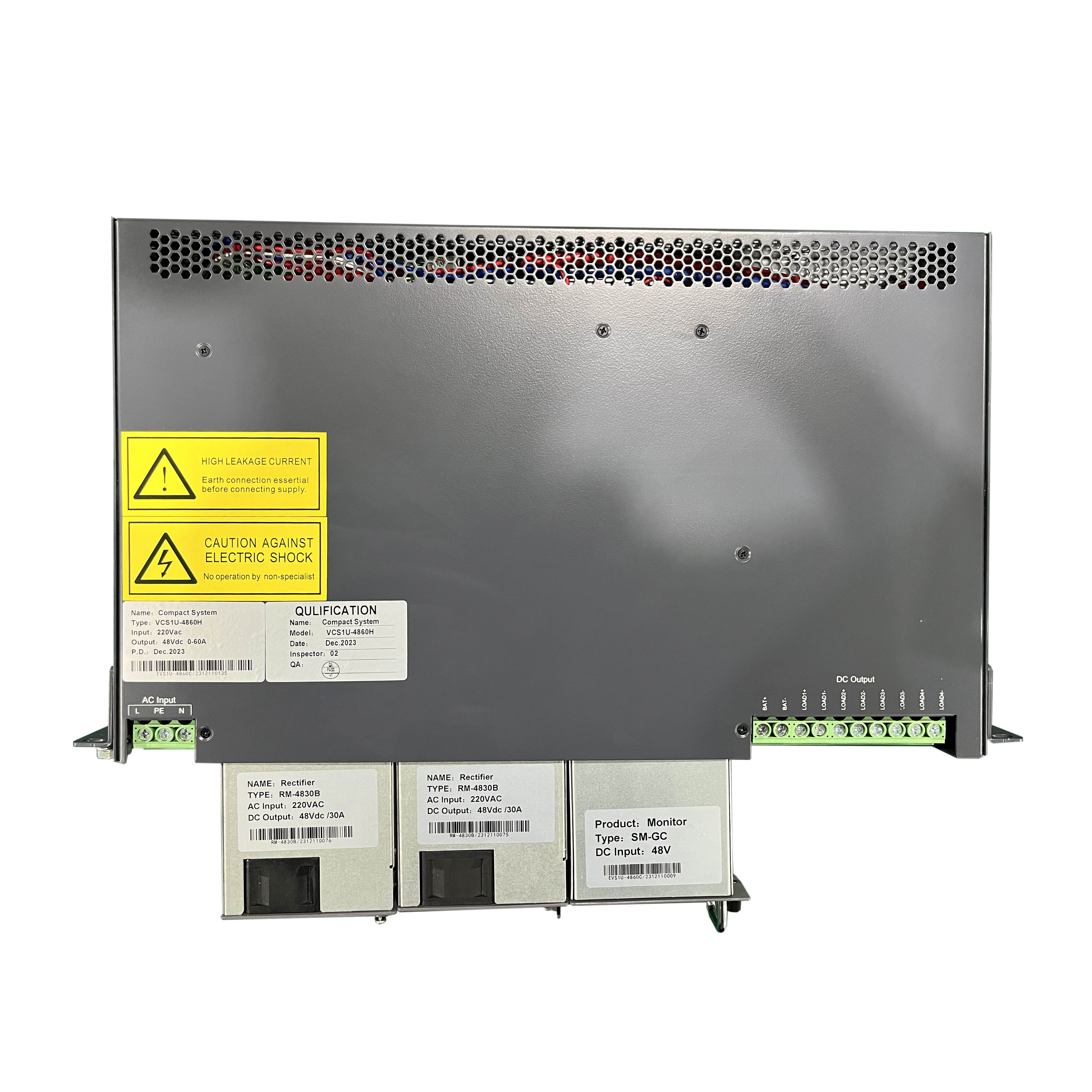

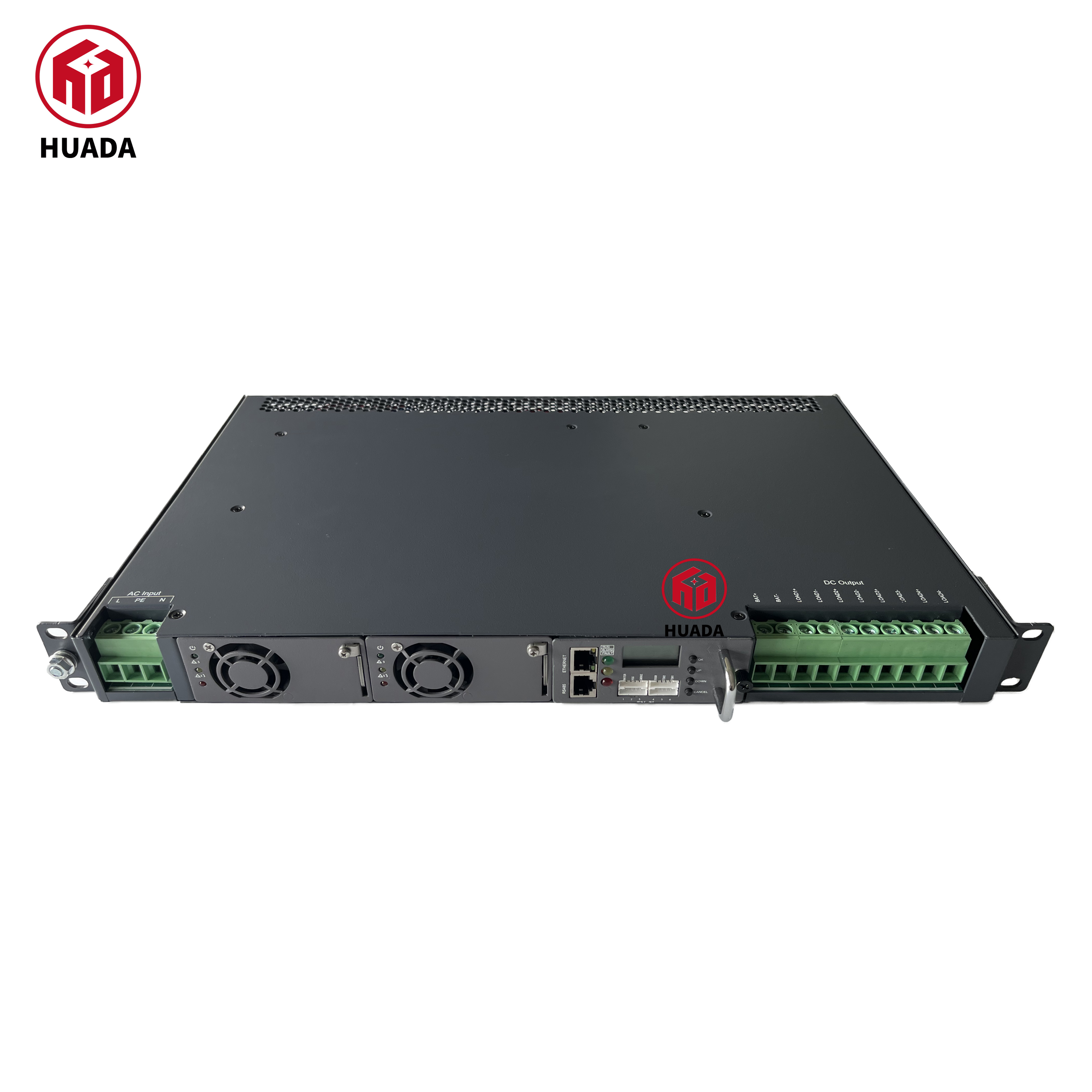

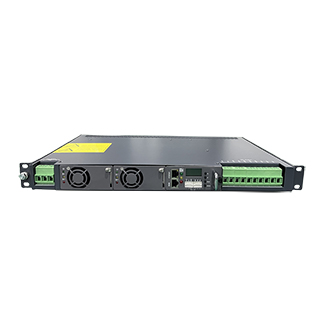

HUADA ETP-4860 48V 60A 3600W 1U Embedded Telecom Power System

HUADA ETP-1U4860 is an ultra-compact 1U 19" 48V DC embedded telecom power system with 96% high-efficiency hot-swappable rectifiers, 3600W capacity, and SNMP remote monitoring for 5G/4G base stations.
inquiry now
  • Product Overview
  • Product Specifications
  • Download
  • Video
  • FAQ

Green Power Core for Next-Generation Communication Infrastructure

The HUADA ETP-1U4860 is an industrial-grade, 1U rack-mounted 48V DC embedded power supply system engineered for 5G/4G telecommunications, micro base stations, broadband access networks, and edge computing facilities. Integrating up to two 1800W high-efficiency switching rectifier modules and an intelligent centralized controller, it delivers up to 3600W (60A) continuous DC power with ≧96% peak conversion efficiency, wide AC input tolerance (85VAC–300VAC), and comprehensive RS485/SNMP remote network monitoring.

Key Performance Features

  • Ultra-High Efficiency: Rectifier modules achieve ≧96% peak conversion efficiency with active power factor correction (PF ≧ 0.99).

  • Wide Operating Voltage: Ultra-wide AC input range of 85V AC ～ 300V AC, perfectly adapted to unstable power grids and fluctuating environments.

  • Zero-Downtime Hot Swapping: Hot-pluggable rectifier modules enable tool-free replacement in under 1 minute without interrupting load operations.

  • Dual-Stage Battery Protection: Comprehensive battery management featuring Low Voltage Load Disconnect (LLVD) and Low Voltage Battery Disconnect (LVBD) with temperature compensation and automatic float control.

  • Intelligent Remote Monitoring: RS485, RS232, and Fast Ethernet / SNMP communication interfaces support local and remote unattended operation.

  • Robust Lightning Protection: High-grade AC (20kA/40kA) and DC (10kA/20kA) surge protection designed for severe thunderstorm zones.

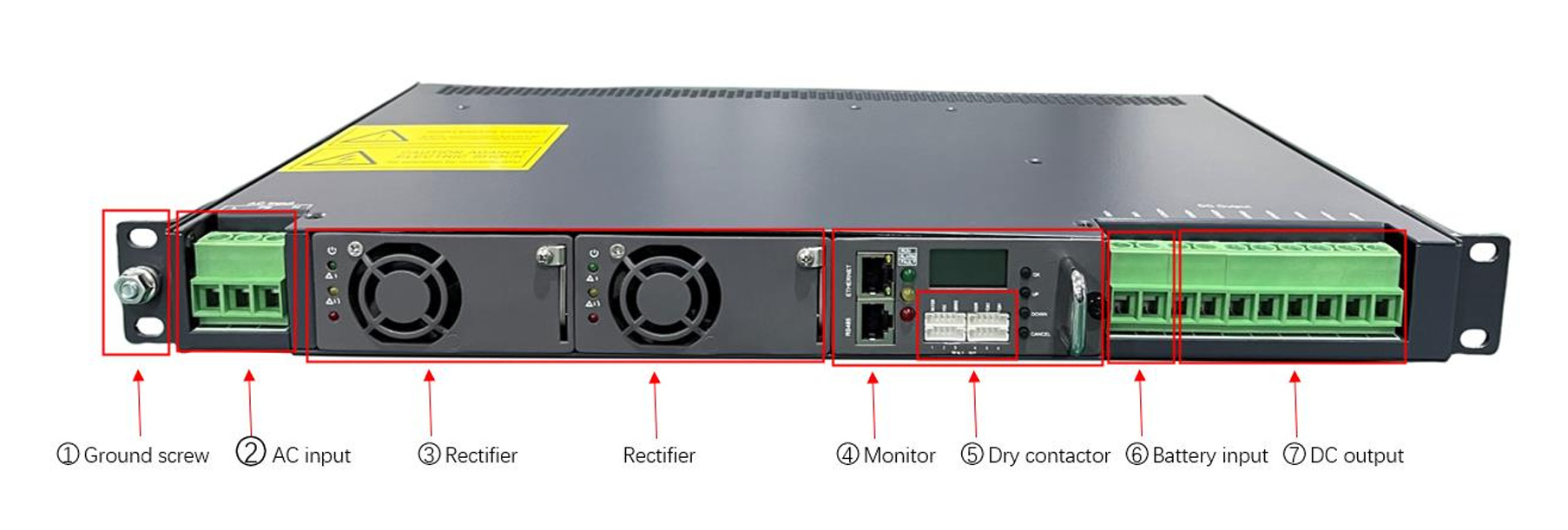

  • Ultra-Compact Space-Saving: Standard 19-inch 1U form factor (482 × 350 × 44.5 mm) fits seamlessly into tight outdoor and indoor cabinets.

  • International Safety Compliance: Full compliance with IEC/EN60950, GB4943, and YD/T983 EMC standards.

Typical Application Scenarios

  • 5G / 4G Macro and Micro Wireless Base Stations (RRU / BBU / AAU DC Power)

  • Fiber Optic Access, Transmission Nodes & Telecom Equipment Rooms

  • Industrial Automation, SCADA & Smart Grid Power Distribution Systems

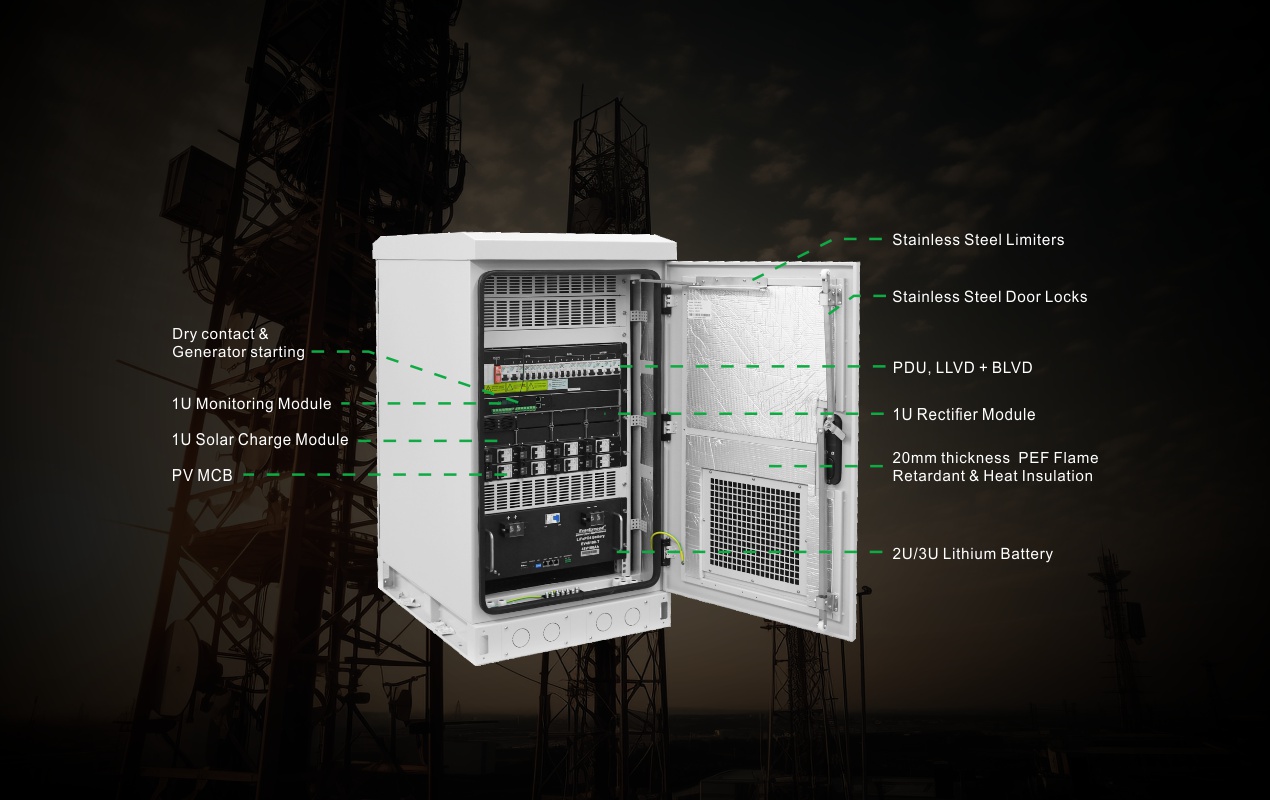

  • Outdoor Telecom Cabinets, Edge Computing Data Enclosures & Microwave Relay Stations

CategoryParameter ItemSpecification Details

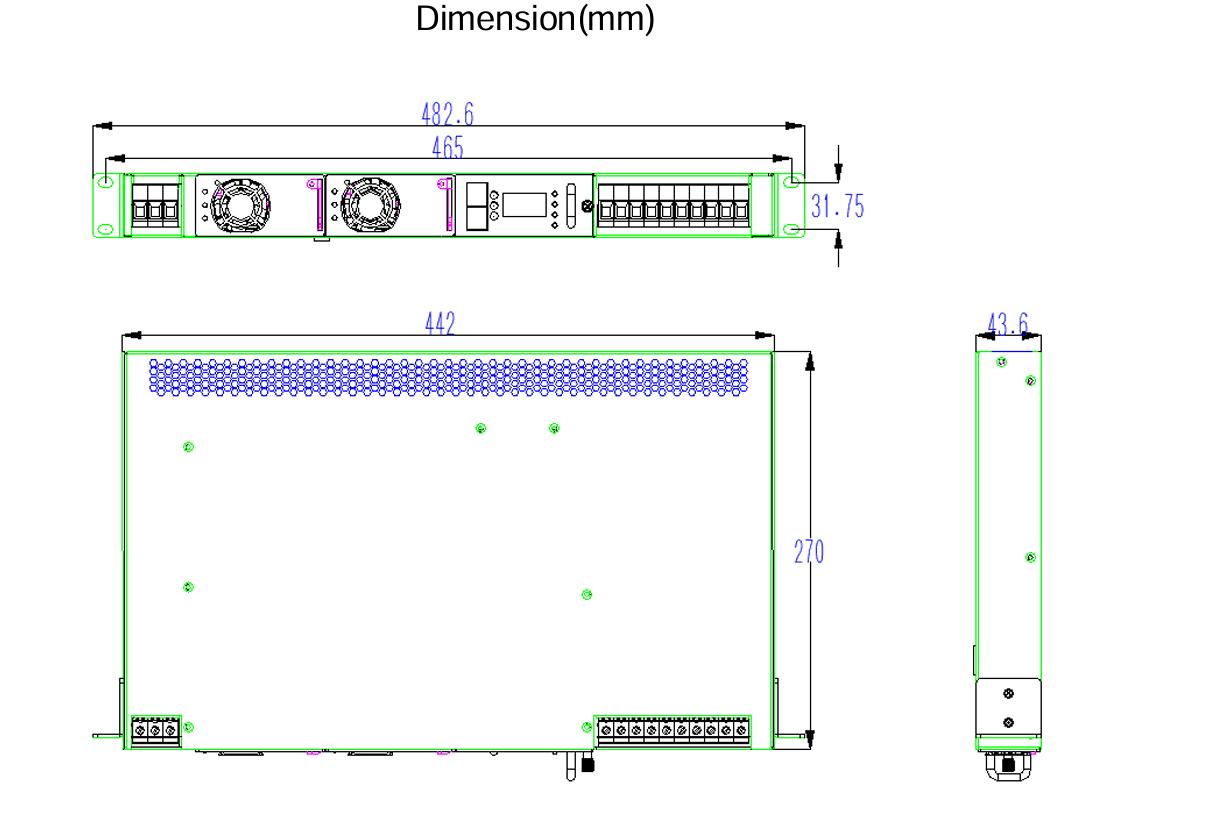

System SpecificationsDimensions (W × D × H)482 mm × 350 mm × 44.5 mm (Standard 19-inch 1U)
System Weight≤ 8 kg (with 2 rectifiers) / ≤ 4 kg (shelf only)
Maximum Power Capacity3600W / 60A (Configurable 1 to 2 Rectifiers)
Installation & Maintenance19-inch rack / cabinet mount; Front-access maintenance
Cabling ModeTop inlet and top outlet
Protection LevelIP20
AC Input & DistributionInput Voltage Range85V AC ～ 300V AC (Rated: 220V AC single-phase / 380V AC 3-phase)
Frequency & Power Factor45Hz ～ 66Hz (Rated 50Hz/60Hz); PF ≧ 0.99; THD ≤ 5%
Input Breakers1 × 63A / 2P or 1 × 63A / 3P
AC Surge ProtectionClass C SPD: 20kA nominal / 40kA max (8/20 μs)
DC Output & DistributionOutput Voltage Range-42V DC ～ -58V DC (Rated standard: -53.5V DC)
Battery Breakers1 × 100A / 1P (or 2P terminal) with LVBD disconnect
Load Distribution Breakers2 × 12A, 2 × 20A, 4 × 40A with LLVD priority disconnect
DC Surge Protection10kA differential / 20kA common mode (8/20 μs)
Monitoring & EnvironmentCommunication InterfacesRS485, RS232, Fast Ethernet / SNMP, 4 Dry Contacts
Operating Temperature-40℃ ～ +80℃ (Full load output up to +60℃)
Operating Humidity & Altitude5% ～ 95% (Non-condensing); 0 ～ 2000m

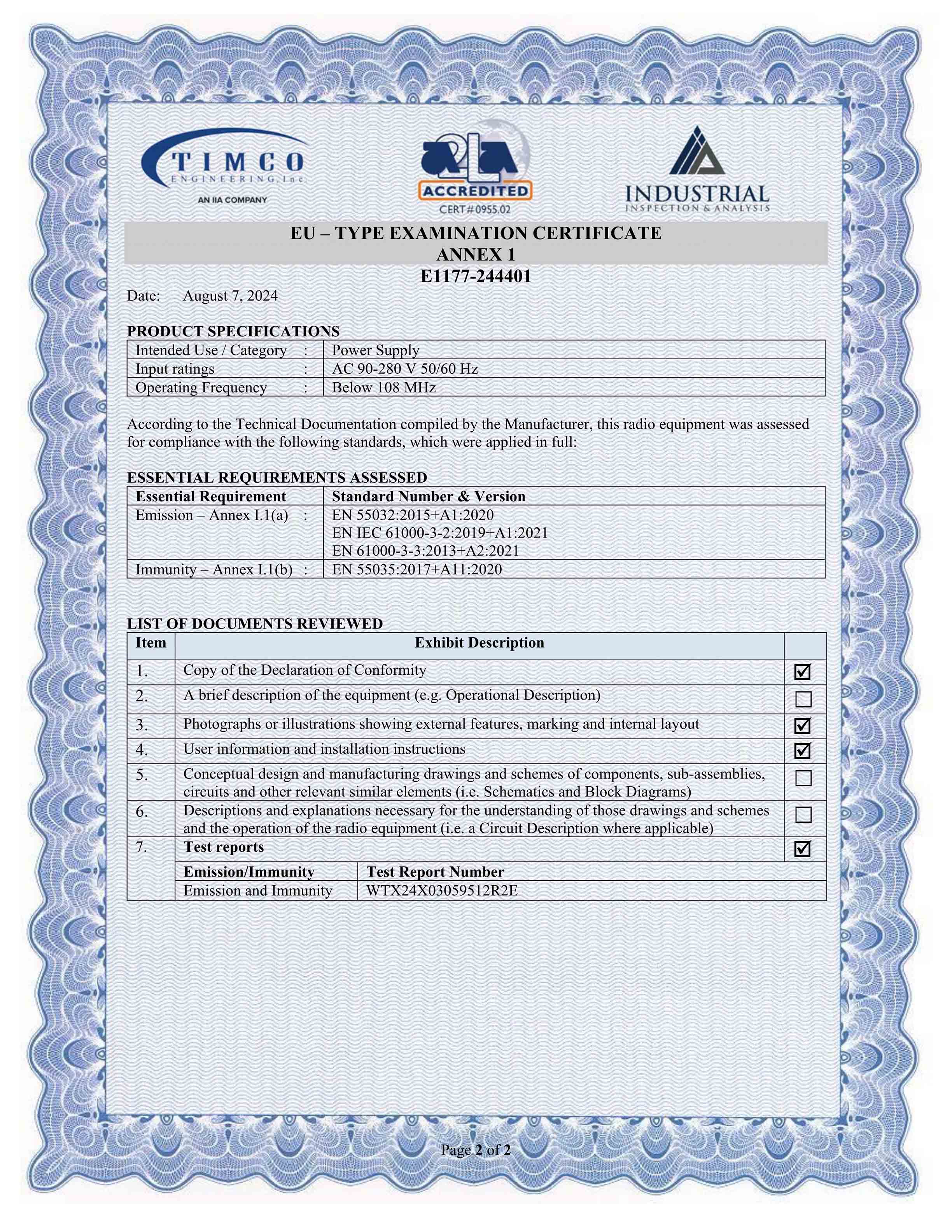

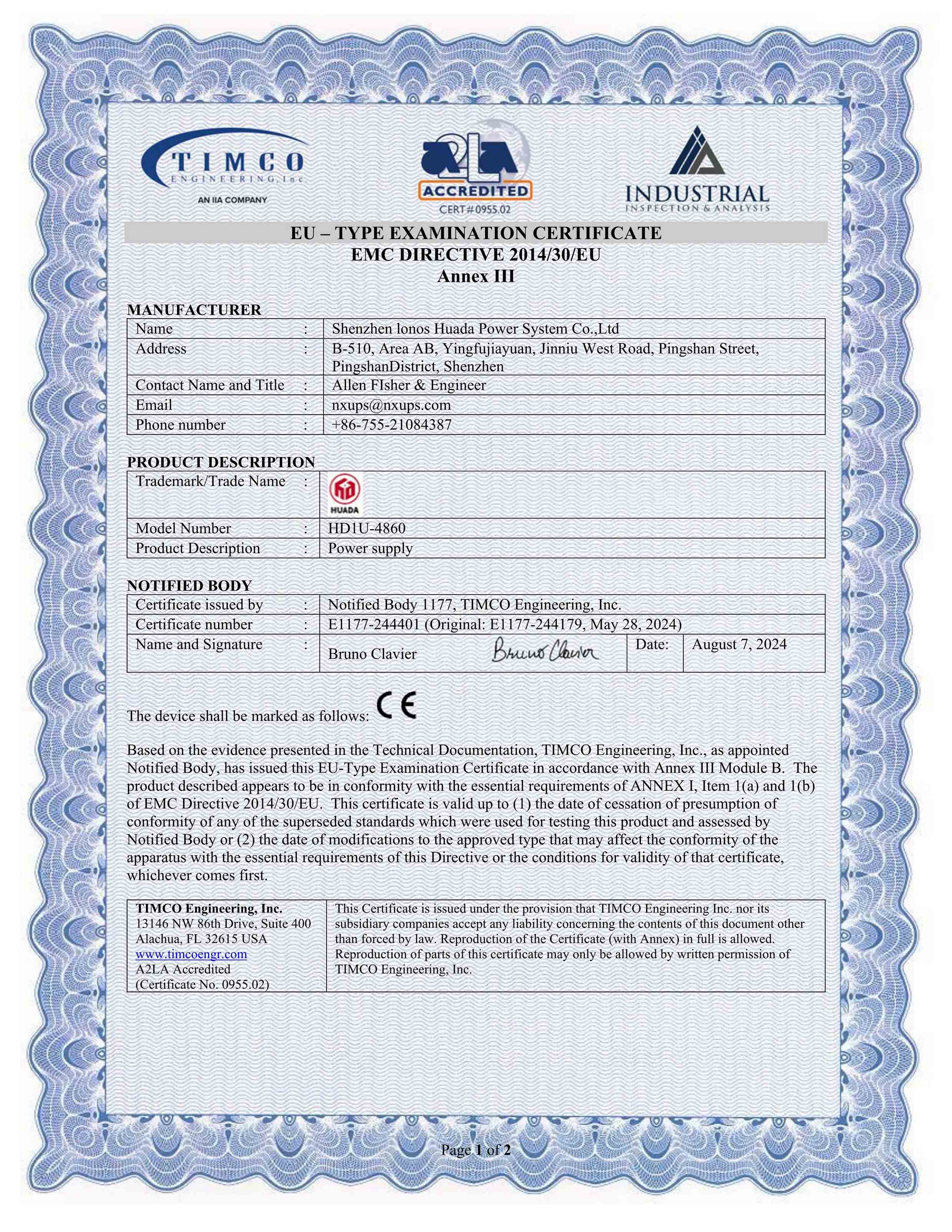

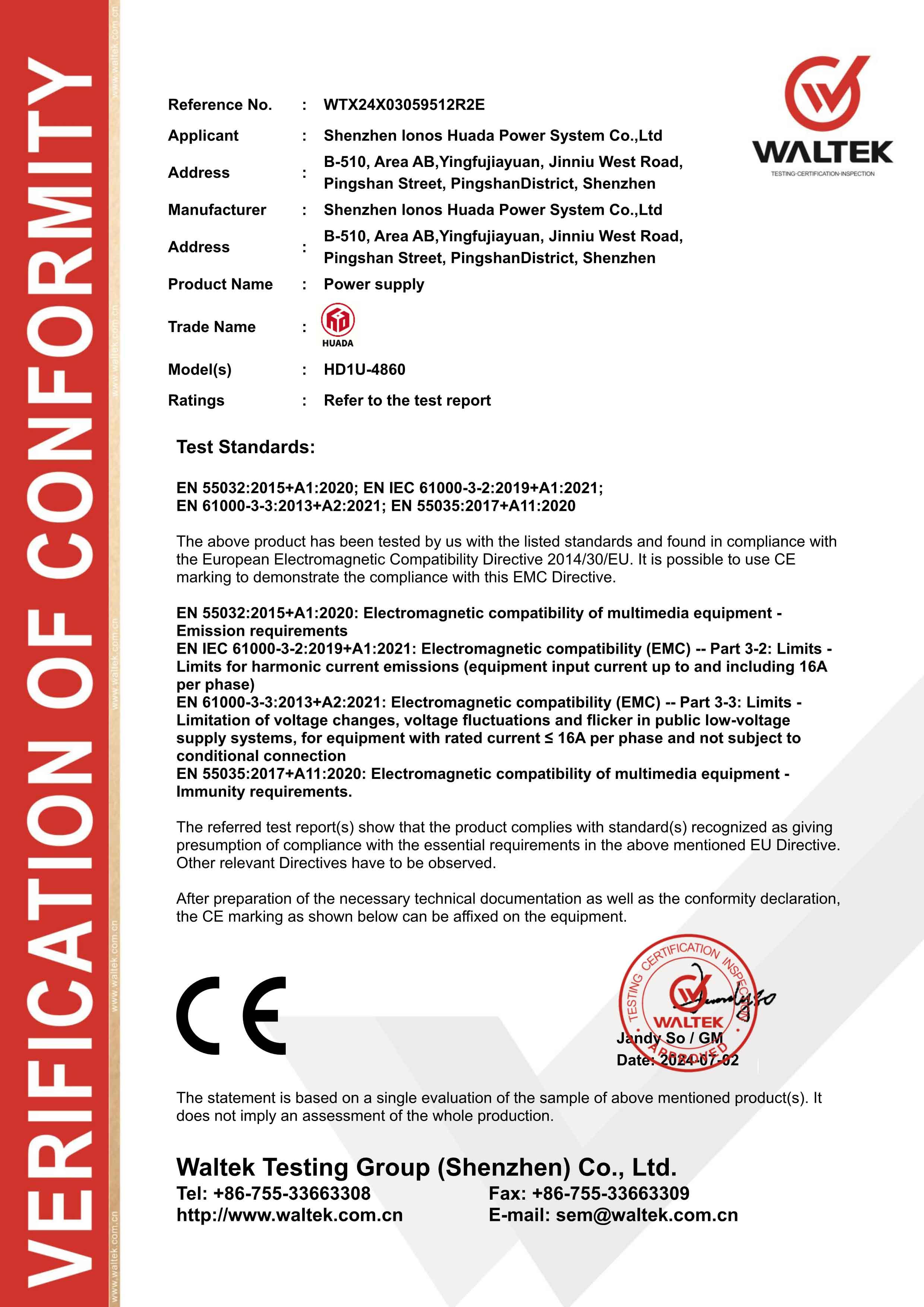

Compliance CertificationsCE, RoHS, IEC/EN60950, GB4943

Download File

Click the button below to start downloading

Download File Now

Q1: Can the ETP-1U4860 system operate with only one rectifier module installed?

A: Yes. The system features a modular N+1 redundant design. It can operate stably with a single 1800W rectifier module (up to 30A @ 48V) and allows hot-plugging a second module at any time to double capacity to 3600W (60A) without shutting down connected loads.

Q2: What is the difference between LLVD and LVBD battery management?

A: LLVD (Low Voltage Load Disconnect) cuts power to non-critical loads first during extended AC outages to prolong backup time for essential devices. LVBD (Low Voltage Battery Disconnect) disconnects the battery pack entirely when reaching the critical cutoff voltage to protect batteries from deep discharge damage.

Q3: Does the system support remote monitoring via SNMP or Web GUI?

A: Yes. The central controller integrates Fast Ethernet and RS485 ports supporting standard SNMP (v1/v2c/v3) and Web browser access for remote monitoring of voltage, current, battery SOC, and instant alarm traps.

Q4: Is the system compatible with both Lithium-ion (LiFePO4) and Lead-Acid batteries?

A: Absolutely. The controller supports pre-set charging curves for AGM/VRLA lead-acid, Gel, and LiFePO4 telecom lithium batteries, with customizable float/boost voltage thresholds and temperature compensation.

Q5: What is the typical lead time for samples and bulk OEM orders?

A: Standard evaluation samples are usually ready to ship within 3–5 working days. Bulk custom orders (50–500 units) typically have a production lead time of 15–20 business days.
